Description:
- Cardboard core from 2 "to 8" including.
- Cutting system is controlled by PLC, the car is equipped with touch screen where you can enter cutting measures 55mm to 1900mm from.
- The cutter is provided with blades so as not to deform the cardboard tube, and to always maintain sharp
|

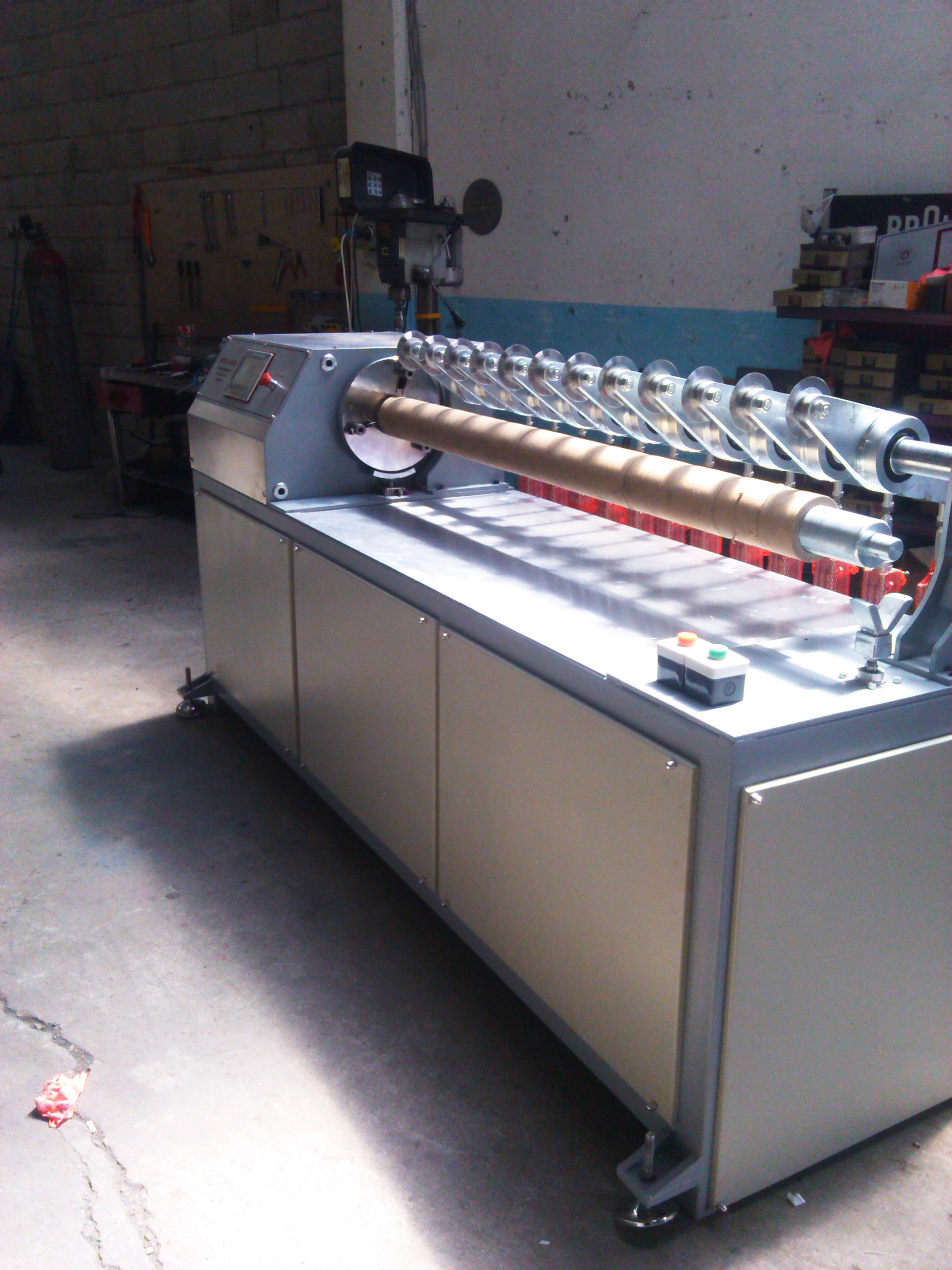

PAPER TUBE CUTTİNG MACHİNE (MANUEL TYPE)
1.Manual loading&unloading
2.Colorful touch screen
3.Multi-knife cutting
4.PLC control Usage
Size
- Mainframe(L*W*H) 2200*1000*1200 MM
- Power of mainframe 4 kw
- Working air pressure 0.6 mpa
- Gross weight 680 kg
|
|
|
Technical Parameter
- Inner diameter 50-152mm (standard)
- Wall thickness 2-25mm
- Recut length 54-1900mm
- Blade quantity 10 groups (standard)

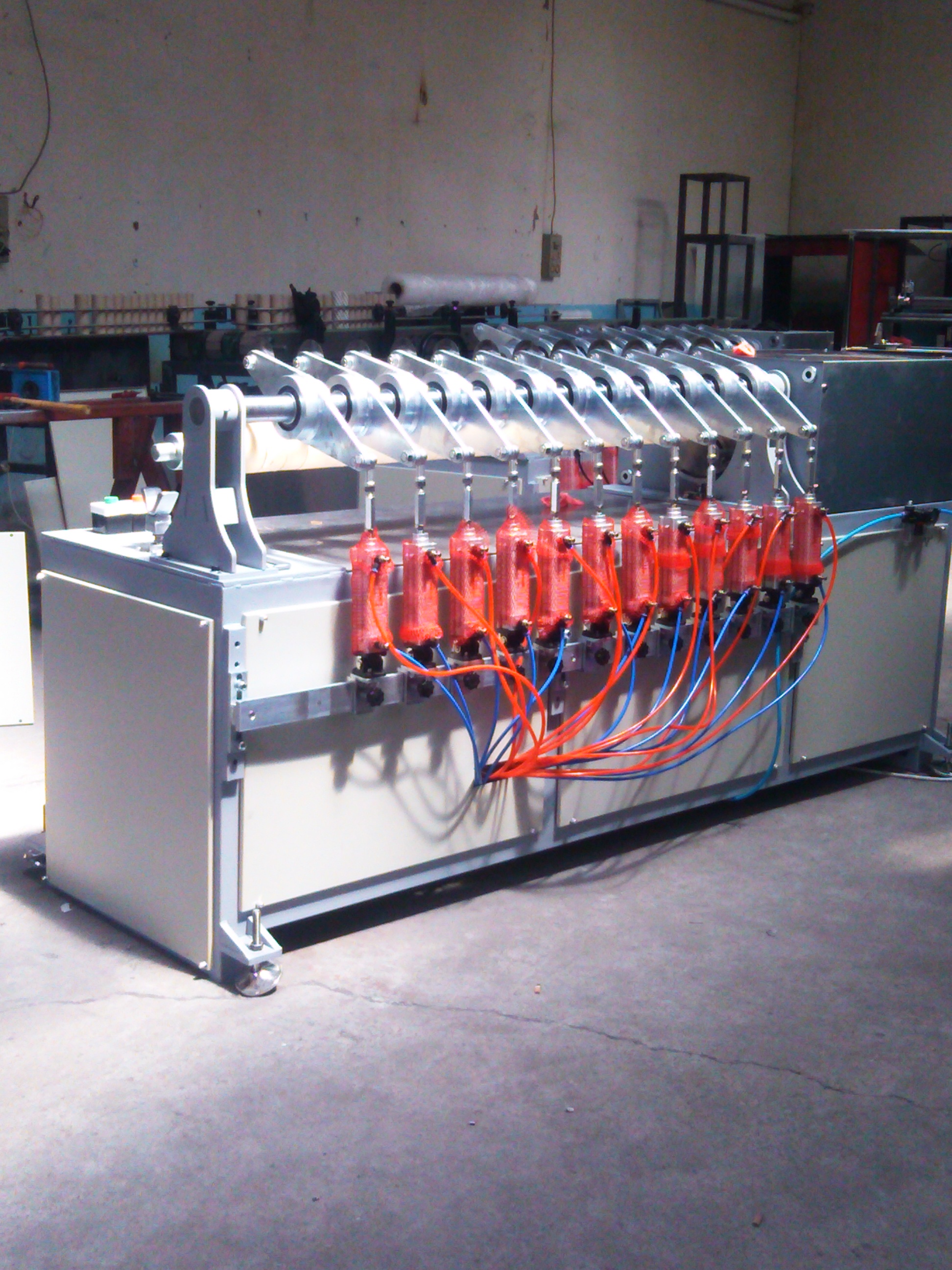

- Down blade way pneumatic
- Power input 380V 50HZ
- Operator 1 person
|
Control system
- PLC controller schneider
- Edition of program Text-manipulation
- Signal components schneider
- Driving components schneider
- Pneumatic components parker or festo
|
|
|
|
