K1&K2 Semi/Automatic
|
K1 SEMI AUTOMATIC SHRINK PACKING MACHINE
TECHNICAL DATA
Type of machine : K1 Semi Automatic
The interior dimensions of the tunnel: 700 x 500 mm
Length of tunnel : 1250 mm
Width : 900 mm
Height : 500 mm
Total length : 4500 mm
|
MAXIMUM PACKAGING DIMENSIONS
Height : 350 mm
Width : 500 mm
Length : 400 mm
Power supply : 380 V – 3 Ph, 50-60 Hz.
Heating power : 16 kw
Average power : 6 kw
Total power : 16 kw
Motor power of the carrier band: 1/3 hp
Sealing bar length : 700 mm
Sealing width : 2*3
Shrink film to be used : PE/Polietilen
Maximum film thickness : 120 Mikron
Air consumption : 60 lt/min
Working pressure : 6 Bar
Packaging capacity : 4 - 6 pcs.
View applications
|
| |
|
|
|
 |
|
|
 |
|
K2 AUTOMATIC SHRINK PACKING MACHINE TECHNICAL DATA
Type of machine : K2 Automatic
The interior dimensions of the tunnel: 700 x 500 mm
Length of tunnel : 1500 mm
Width : 900 mm
Height : 500 mm
Total length : 5000 mm
|
MAXIMUM PACKAGING DIMENSIONS
Height : 350 mm
Width : 500 mm
Length : 400 mm
Power supply : 380 V – 3 Ph, 50-60 Hz.
Heating power : 16 kw
Average power : 6 kw
Total power : 16 kw
Motor power of the carrier band: 1/3 hp
Sealing bar length : 700 mm
Sealing width : 2*3
Shrink film to be used : PE/Polietilen
Maximum film thickness : 120 Mikron
Air consumption : 60 lt/min
Working pressure : 6 Bar
Packaging capacity : 15 - 20 Adet
|
View applications
K3&K4 Semi/Full Automatic
Shrink Wrapping Machine Furniture Full Automatic - K4
K5 Thermal Shrink

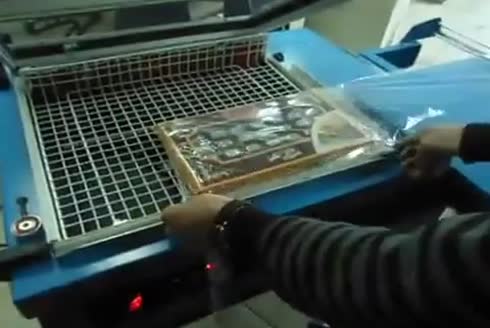

Shrink packaging machine with Cover and PVC
|
Shrink packaging machine lid - k5
Technical data:
Type machine: K5
Dimensions : 42 x 55 cm
*Special glass lid
*Resistance Chamber rustproof
* Static paint (email)
* Simultaneous cutting and shrink process
* Height adjustment for different products
* Adjustable table
* Possibility of different packages packaging
* Setting Heat
* CE standard
* Production a only operator
* Magnetic lock timer
* Provides bonding and shrinking its packaging around the product
* Power : 220V. 50Hz 2,5 kW
* Productivity: 400 - 700 buc/ora;
* Use as packing material: PVC, polyolefin
* It is a chassis with wheels for easy movement
* Cover with automatic lifting
|
|
| Can pack both product boxes and individual products with thermo foil (boxes of candy, cookies, bread, eggs, chocolate, toothpaste, soap, school supplies, etc.) |
  |
K6 Semi Automatic
Shrink Wrapping Machine Semi Automatic tunnel - K6
Power line Shrink Tunnel
|
Power line Shrink Tunnel + Grouped device
|
| Technical data:
Automatic power line tunnel Shrink +Grouped device
Cod: S-4022 (SERVO)
Cod:GK Conveior de grupaj
- The fully automatic cutting continues
- Gluing in 3 parts
- Torches automatic servo control
- Automatic detection products with irregular sizes
- Easy adaptation to different packaging sizes
- Continuity in quality packaging
- Ideal for frequent product changes
- Easy to use, maximum performance
- Product data memory
- Touch control panel
- Covered with ceramic knives and gluing constant temperature controlled
- Film exchange easier and faster
- The cutting system is suitable for sealing PE-polyolefin
- It can work between 7-100 microns thick film
- Safety sensor
- Automatically update software
- Detecting sensor product dimension
- Control room - front and back of the product
|
- Removable side gluing unit
- Production in succession without operator
- Automatic control of the packaged unloading surplus
- Low-film
- Automatic recognition package size
- Production with CE certificate
- 2 years warranty except consumables (wear parts)
- 5-year warranty parts supply
Capacity:
- 80 pcs / min - 37 m / min
- Cutting dimensions: 400 x 220 mm x unlimited
- Air pressure: 4-6 bar
- Electricity: 380 V, 50 Hz 3 kW
- Weight: 850 kg
- Control Panel: B & R
- B & R PLC
- Power: B & R
- Salt: EATON
- Pneumatic: FESTO
- Reductoare: VARVEL
- Motorlar :NERİ MOTORİ
|
| View Video |
